Adding Legends to Streamline plot

Posted 28.04.2016, 10:53 GMT-4 0 Replies

Parth Swaroop
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Dear comsol users,

I need some help here. I want to assign values of magnitude of velocity in the streamline plots. I can do it contours but it looks quite crappy and non readable.

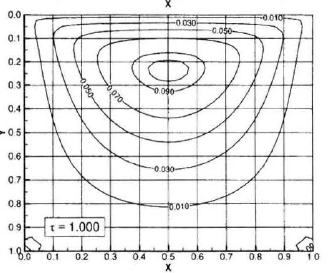

I would like to re-create something like show the image file.

Kindly help.

Parth

Attachments:

0 Replies Last Post 28.04.2016, 10:53 GMT-4
COMSOL Moderator

Hello Parth Swaroop

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
