1D Plot Sampling Decimation

Posted 27.02.2016, 12:32 GMT-5 0 Replies

Chris Nadovich
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

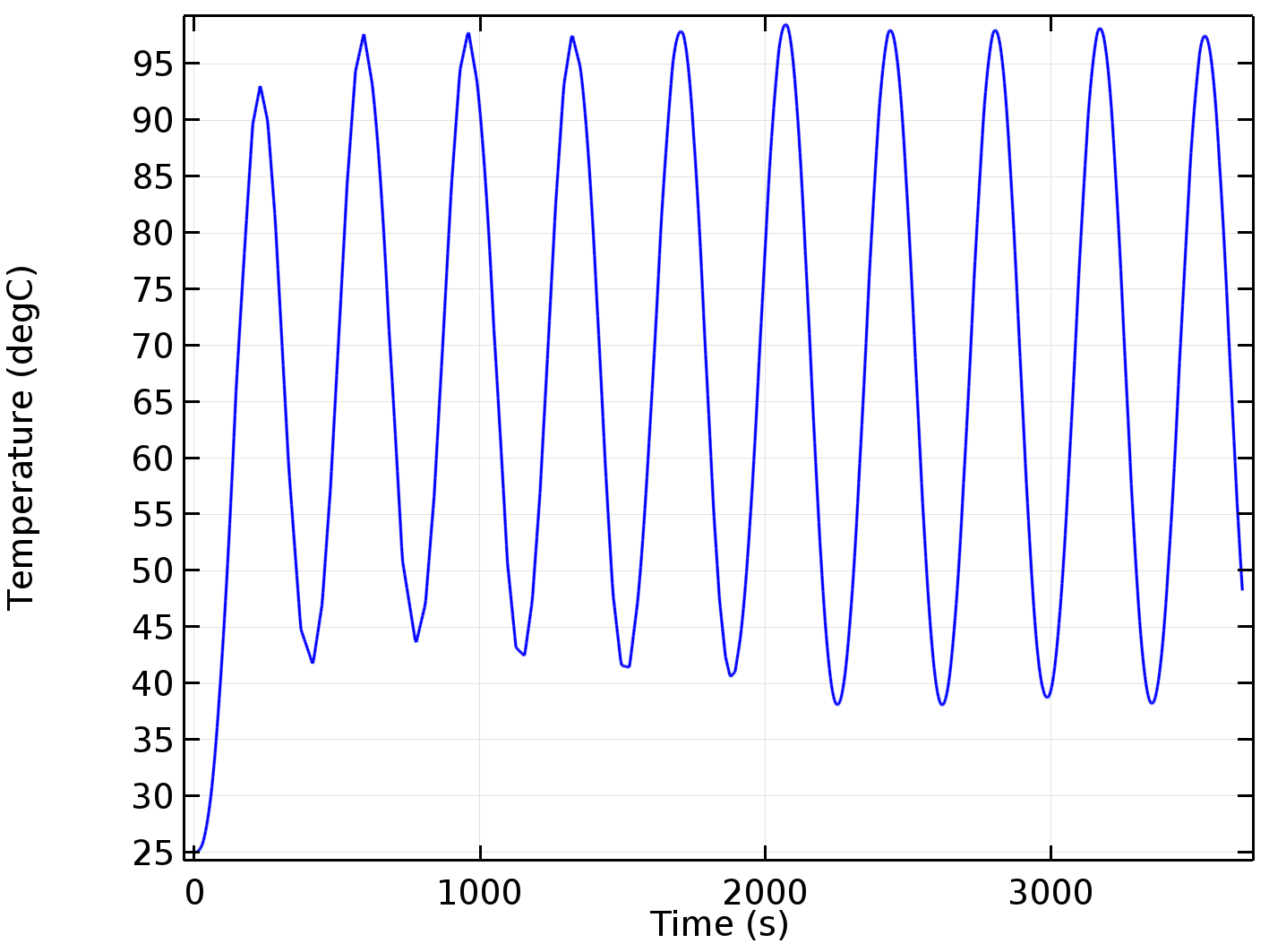

I'm doing a time dependent study of temperature versus time. I'm running for 3600 seconds with a step size of about 1 second. Everything looks good, except when I make a 1D plot of temperature it looks like COMSOL doesn't plot all the points. See attached. It looks like COMSOL decimates my data and
plots only, maybe 100 points. All thousand points are really in the data set. I see them if I make a table, but they don't appear on the plot. If I decrease the stepsize of the simulation, the time graph looks just a coarse. What Gives? I don't see any option on 1D Plot Point Graph for specifying decimation. No doubt it's some arcane option I missed, but I really have looked. Thanks in advance for pointing me toward the answer.

Attachments:

0 Replies Last Post 27.02.2016, 12:32 GMT-5
COMSOL Moderator

Hello Chris Nadovich

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
