How to use COMSOL to solve problems with dimensionless time and distance but not conventional t and x???

Posted 26.01.2015, 03:59 GMT-5 Version 4.4 6 Replies

Shirley Long
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

In my model, I need to transfer the conventional mathematical model into dimensionless one. For example, transfer t into ι=t*u/n/L . Then I have to draw picture with dimensionless distance and time. How can I achieve that ???

The picture like one of the the COMSOL conference paper by Ben Niu?????
Thank you?

Attachments:

6 Replies Last Post 27.01.2015, 02:55 GMT-5
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26.01.2015, 07:10 GMT-5
You can define any variable or their combination in the plot definitions.

In the main window of Comsol model you can select the unit system; there is also a dimensionless option.

Lasse
You can define any variable or their combination in the plot definitions. In the main window of Comsol model you can select the unit system; there is also a dimensionless option. Lasse
Shirley Long
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26.01.2015, 07:13 GMT-5
Hello Lasse:
Thank you very much for your technical help. I'll try it.

Shirley
Hello Lasse: Thank you very much for your technical help. I'll try it. Shirley
Shirley Long
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26.01.2015, 07:24 GMT-5
Hello Lasse，

I have modified the model with the method you told me, but there is still some problems.

I want to repeat the model in this paper and make some improvements, draw the relations between c and dimensionless time.

Can you tell me how to achieve that??? Thank you very much.

Shirley
Hello Lasse， I have modified the model with the method you told me, but there is still some problems. I want to repeat the model in this paper and make some improvements, draw the relations between c and dimensionless time. Can you tell me how to achieve that??? Thank you very much. Shirley

Attachments:

Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26.01.2015, 09:45 GMT-5
What's the problem? Reading the paper takes some effort...

Lasse
What's the problem? Reading the paper takes some effort... Lasse
Shirley Long
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 26.01.2015, 20:17 GMT-5

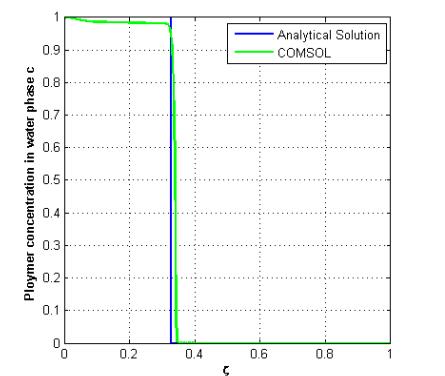

Get a relationship curve between concentration C and dimensionless time . But in the model the default is conventional time t, even I set the unit system to be non in the main surface.
Get a relationship curve between concentration C and dimensionless time . But in the model the default is conventional time t, even I set the unit system to be non in the main surface.
Lasse Murtomäki
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 10 years ago 27.01.2015, 02:55 GMT-5
You need to make a global plot:

Results --> 1D Plot Group --> Global --> x Axis Data --> Parameter: Expression

There you can put your dimensionless time.

Wish this helps
Lasse

You need to make a global plot: Results --> 1D Plot Group --> Global --> x Axis Data --> Parameter: Expression There you can put your dimensionless time. Wish this helps Lasse
