no current incuced in my inner coil.

Posted 30.07.2014, 14:10 GMT-4 Low-Frequency Electromagnetics Version 4.4 3 Replies

Juliana Steinbach
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I am trying to find the induced voltage on my coil wich is induced by another external coil, both are multi turn coil and numerical, they are over an alluminum bar, they are concentric and the inner coil has a current equals to 0 and the external coil has 1 [A], I have added the input and an electric insulation in both and in the step I have a coil current calculation for the external coil and also a frequence domain, but my global evaluation keeps showing me a voltage equals to zero in my inner coil, does anyone know what I am doing wrong?

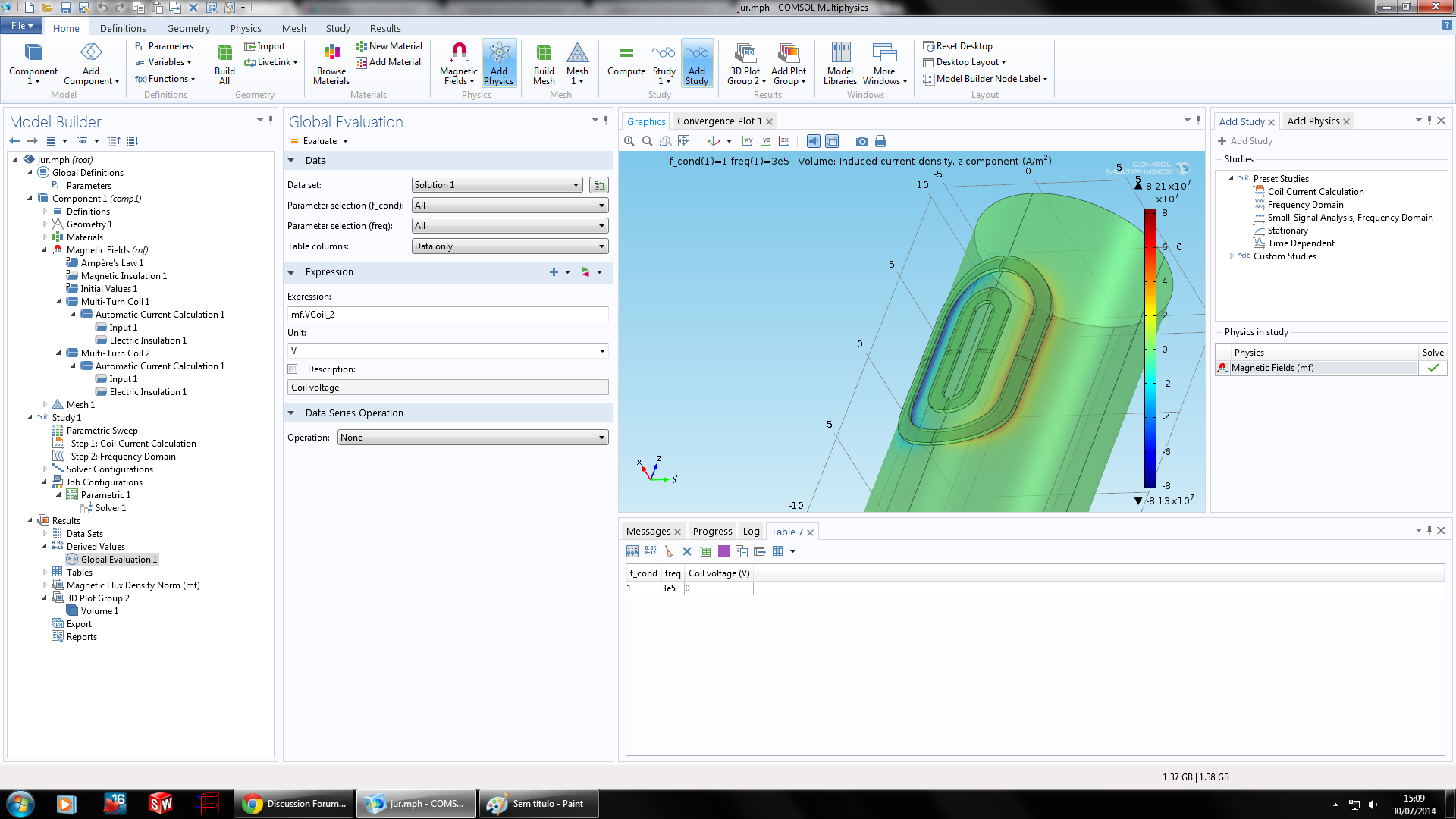

Attachments:

3 Replies Last Post 30.07.2014, 17:29 GMT-4
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 30.07.2014, 15:17 GMT-4
Juliana,

the picture looks like there is no air domain around the coils. They seem to be attached to the surface of the cylinder. If this is the case there can't be a field around the coils. You need to put it all into an air box. Many more can be wrong of course.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Juliana, the picture looks like there is no air domain around the coils. They seem to be attached to the surface of the cylinder. If this is the case there can't be a field around the coils. You need to put it all into an air box. Many more can be wrong of course. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
Juliana Steinbach
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 30.07.2014, 15:20 GMT-4
Hi Edgar, the air is just hidden, and also I have changed its electical conductivity to 10 S/m... and the coils are separeted from the bar by 0.118[mm]...
Hi Edgar, the air is just hidden, and also I have changed its electical conductivity to 10 S/m... and the coils are separeted from the bar by 0.118[mm]...
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 30.07.2014, 17:29 GMT-4
Juliana,

we would need to have a look into the model to get any further. It could be a support case too.

Cheers
Edgar

--
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Juliana, we would need to have a look into the model to get any further. It could be a support case too. Cheers Edgar -- Edgar J. Kaiser emPhys Physical Technology http://www.emphys.com
