Couldn't plot 2d drawing

Posted 26.12.2013, 00:21 GMT-5 Results & Visualization Version 4.3 1 Reply

Kumar Navamani
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

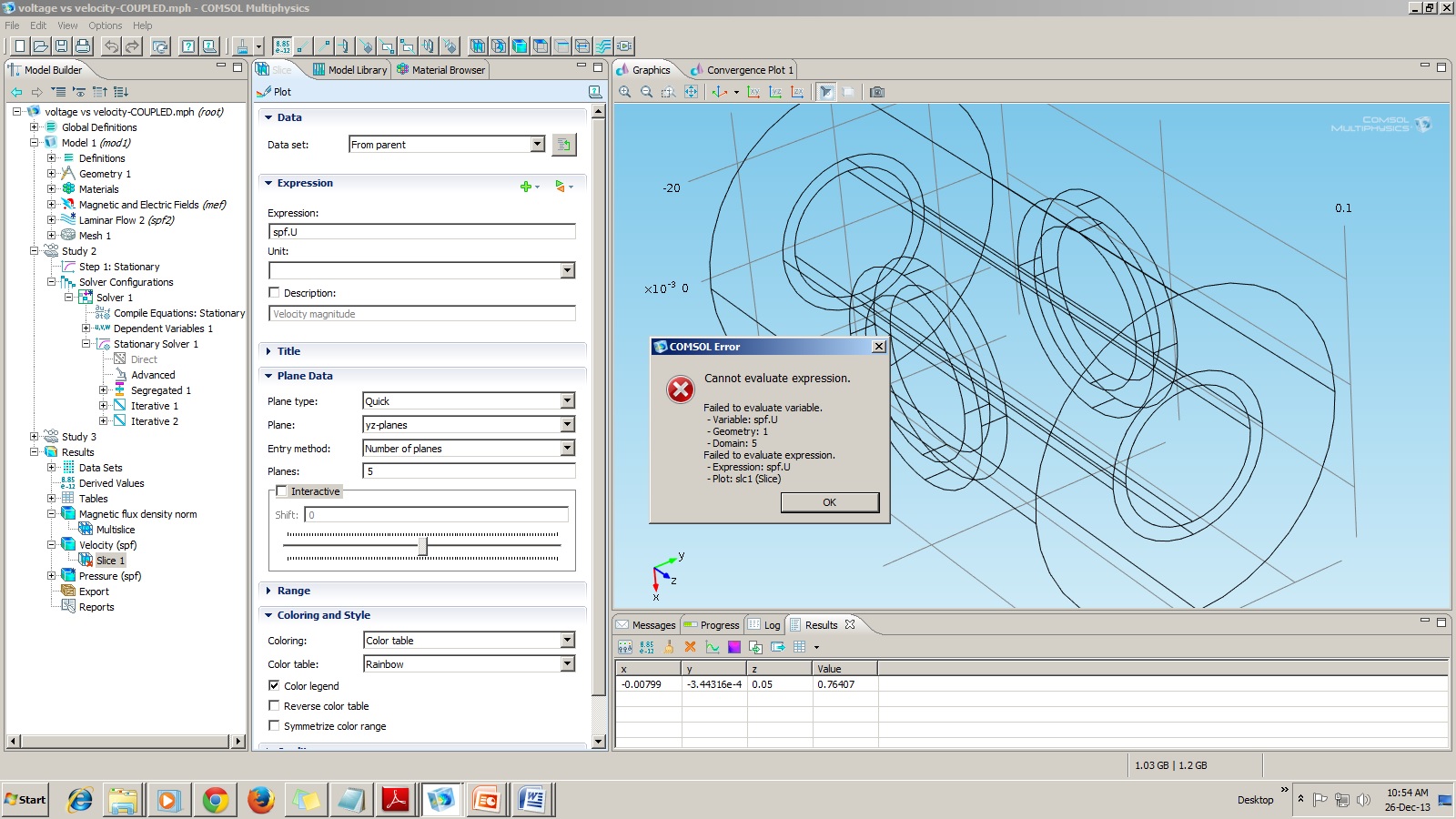

This is N.Kumar from IIT MADRAS, I was trying to get the 2d plot for the electromagnetic flow meter.in this regard i was facing the preoblem as,

failed to evaluate variable:
variable:spf.U
Geometry:1
domain:1
Failed to evaluatr expression:
expression:spf.U
plot slc(1) slice.
1 Reply Last Post 27.12.2013, 03:02 GMT-5
Frank van Gool COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27.12.2013, 03:02 GMT-5
Hello Kumar,
Your laminar flow has identifier spf2, therefore you should plot spf2.U. This should fix the error.

Best regards,
Frank
Hello Kumar, Your laminar flow has identifier spf2, therefore you should plot spf2.U. This should fix the error. Best regards, Frank
