FSI rotating mesh
Posted 27.11.2013, 06:51 GMT-5 Mesh 2 Replies
Please login with a confirmed email address before reporting spam
Hi everyone,
I'm trying to simulate a rotating object inclined in a laminar flow with the FSI physics. I managed to rotate an object with a body load, but it causes a lot of remeshing.
The rotating machinery physics deals with this problem by using a rotating mesh and a flow continuity boundary condition between the stationary and the rotating domain. I tried the same in the FSI physics but the continuity boundary condition produces "failed to evaluate... k_stress_tensor_testYX ".
Thanks for your help!
Moritz
I'm trying to simulate a rotating object inclined in a laminar flow with the FSI physics. I managed to rotate an object with a body load, but it causes a lot of remeshing.
The rotating machinery physics deals with this problem by using a rotating mesh and a flow continuity boundary condition between the stationary and the rotating domain. I tried the same in the FSI physics but the continuity boundary condition produces "failed to evaluate... k_stress_tensor_testYX ".
Thanks for your help!
Moritz
Attachments:
2 Replies Last Post 06.12.2016, 13:00 GMT-5
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Dear Moritz

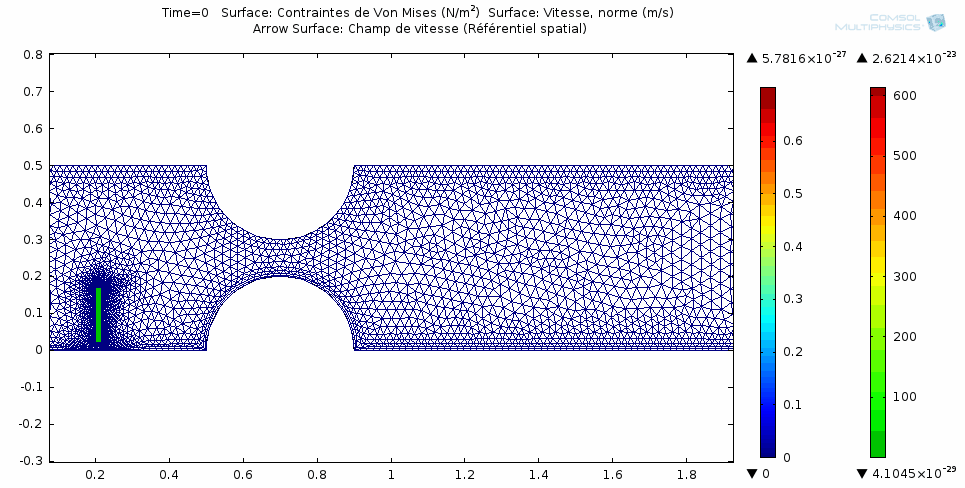

Have a look at attached animation. It seems to be similar to your model.
For further information please contact your support representative: www.ch.comsol.com/support
Best regards,
Zoran
Have a look at attached animation. It seems to be similar to your model.
For further information please contact your support representative: www.ch.comsol.com/support
Best regards,
Zoran
Attachments:
Please login with a confirmed email address before reporting spam
Posted:
8 years ago
hi
i need to measure Cdamping for my latter works.im using comsol 5.1 software too. I want to use FSI interface that is used to model a material of arbitrary shape in a flow. i have some problems in this.i get an error in 3D designing: Failed to evaluate operator Jacobian.
would you mind helping us more about this problem?
i need to measure Cdamping for my latter works.im using comsol 5.1 software too. I want to use FSI interface that is used to model a material of arbitrary shape in a flow. i have some problems in this.i get an error in 3D designing: Failed to evaluate operator Jacobian.
would you mind helping us more about this problem?
