Resonant Frequency for comb accelerometer
Posted 13.11.2013, 05:10 GMT-5 MEMS & Nanotechnology, MEMS & Piezoelectric Devices 1 Reply
Please login with a confirmed email address before reporting spam
i really hope that i can get input from you all.

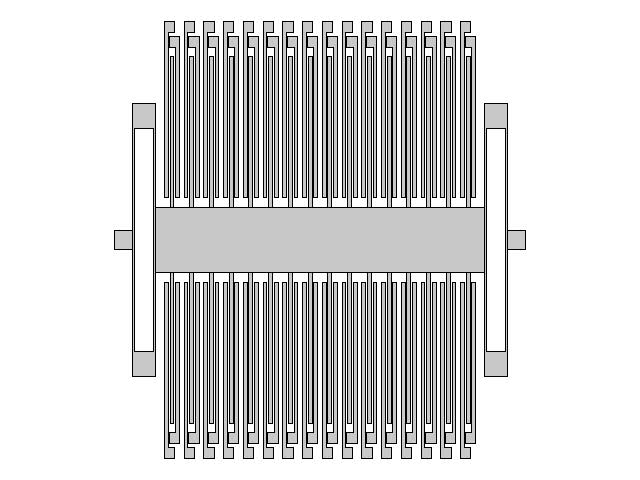

I modelling a capacitive comb accelerometer. See picture attached.
I have used:
Solid Mechanic - to get displacement
Electrostatic- to get capacitance
To get the model moving i have put -a*solid.rho at the body load in Solid Mechanics
to get the resonant freq, i used eigenfrequency study and the simulation value that i've got is different from the calculation .
I used the equation f = (sqrt(k/M)/2*pi to get my calculation value of resonant.
is the any thing in the eigenfrequency that i need to set up ?
PLEASE HELP
Attachments:
Hello Nisa K
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
Please login with a confirmed email address before reporting spam
I am also getting the same problem. Could you find the solution. Please let me know.
