Using interpolation functions.

Posted 01.07.2013, 02:43 GMT-4 Microfluidics, Materials Version 4.1 0 Replies

Tobias Hutzenlaub
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

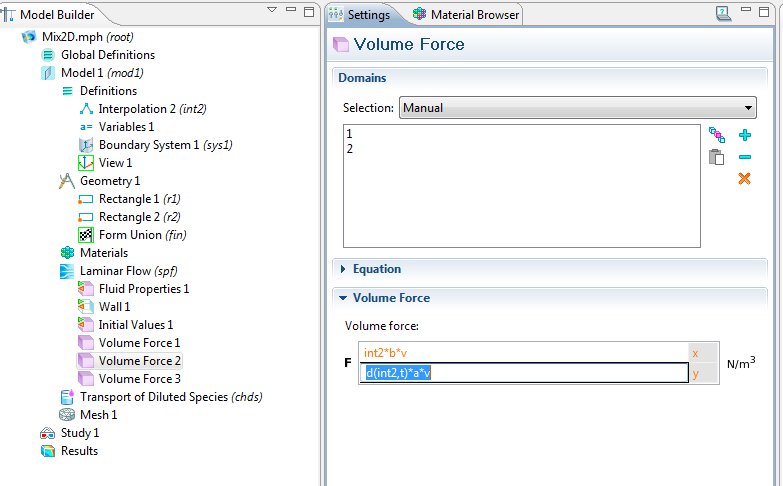

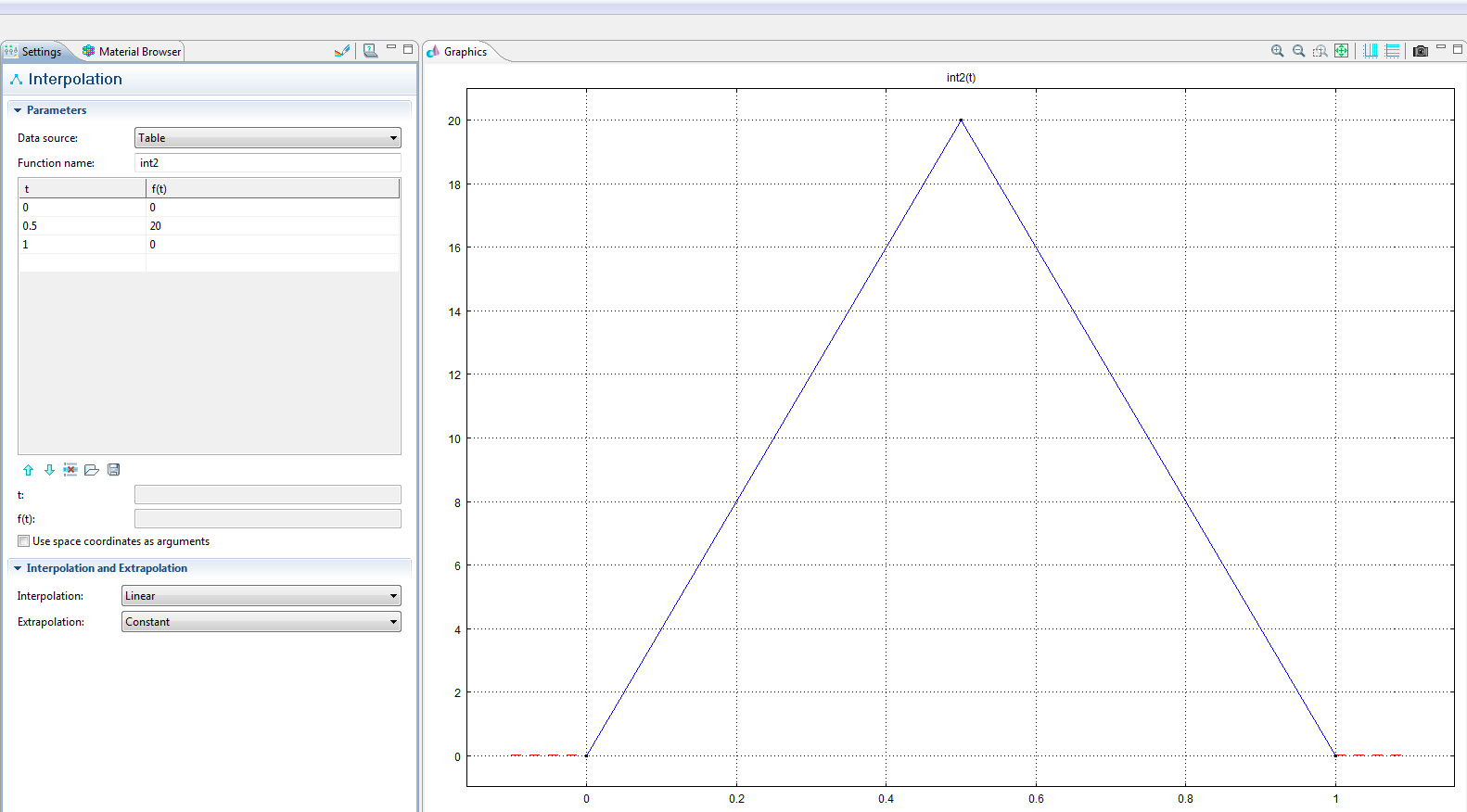

Hi, I have a persumeably very simple problem when using interpolation functions. I have added two images to illustrate the problem. I defined a simple saw tooth interpolation function and now I want to use this function (and its derivative) in the definition of a volume force. Comsol doesn't accept if I do this directly. I guess I have to somehow additionally define the functions under "variables" but can't find any working way to do this. What am I doing wrong? Thanks!
0 Replies Last Post 01.07.2013, 02:43 GMT-4
COMSOL Moderator

Hello Tobias Hutzenlaub

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
