Create a curved cylinder in Comsol 4.3a

Posted 31.05.2013, 10:12 GMT-4 Geometry 0 Replies

Lahoucine Ouhsaine
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

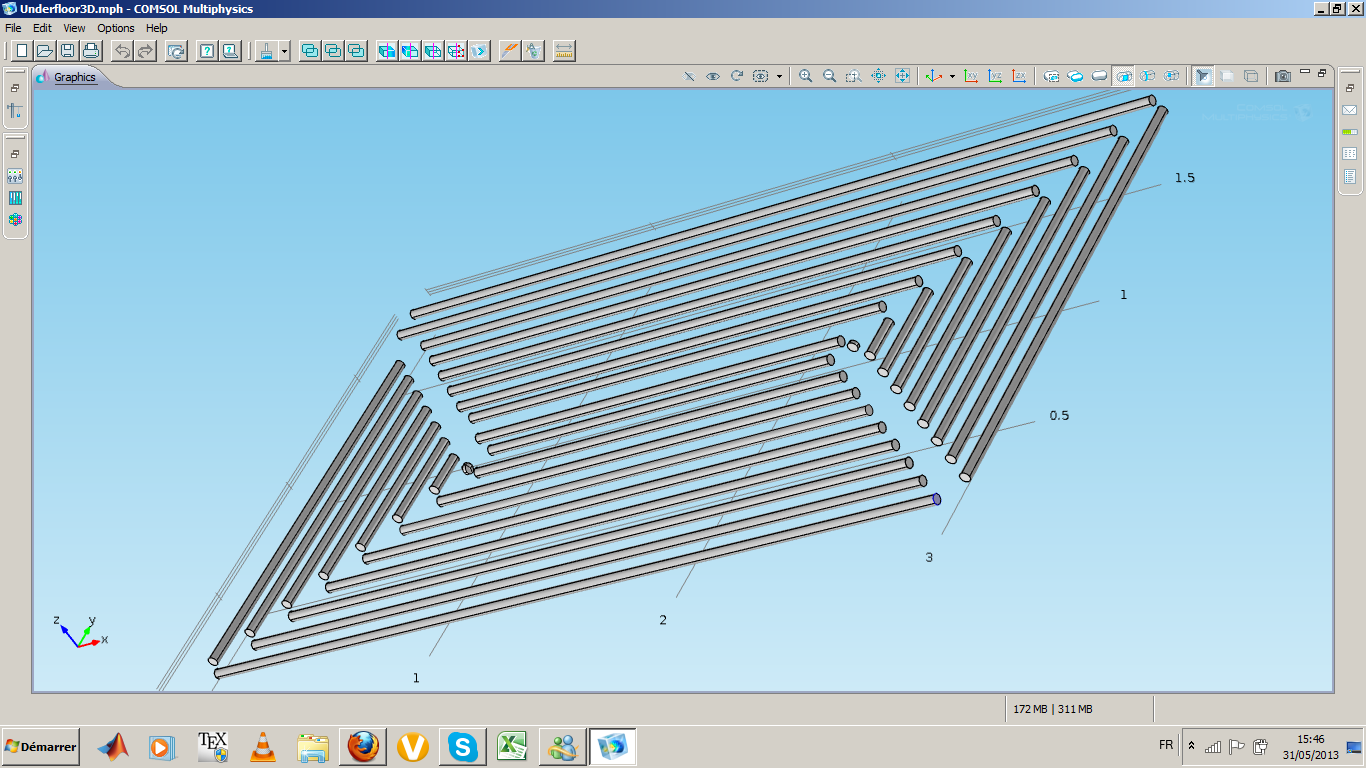

I want to modelling a thermal and mechanical behaviors in a curved pipes to simulate an underfloor model, so i began to draw the geometry in 3D by COMSOL 4.3a version , so the problem i can't to link this pipes by a curved cylinder (see figure at the attached file please), who person know how to do that in COMSOL?

Thank you very much.

Attachments:

0 Replies Last Post 31.05.2013, 10:12 GMT-4
COMSOL Moderator

Hello Lahoucine Ouhsaine

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
