What to set for "show equations assuming"?
Posted 17.03.2024, 09:04 GMT-4 Heat Transfer, Optimization, Studies & Solvers Version 6.2 2 Replies
Please login with a confirmed email address before reporting spam
when doing topology optimization, if I have multiple studies ahead, where study5 is designed for Topology Optimization, for this part Density model -> equation - > show equations assuming should I leave it as None or Choose the study5.

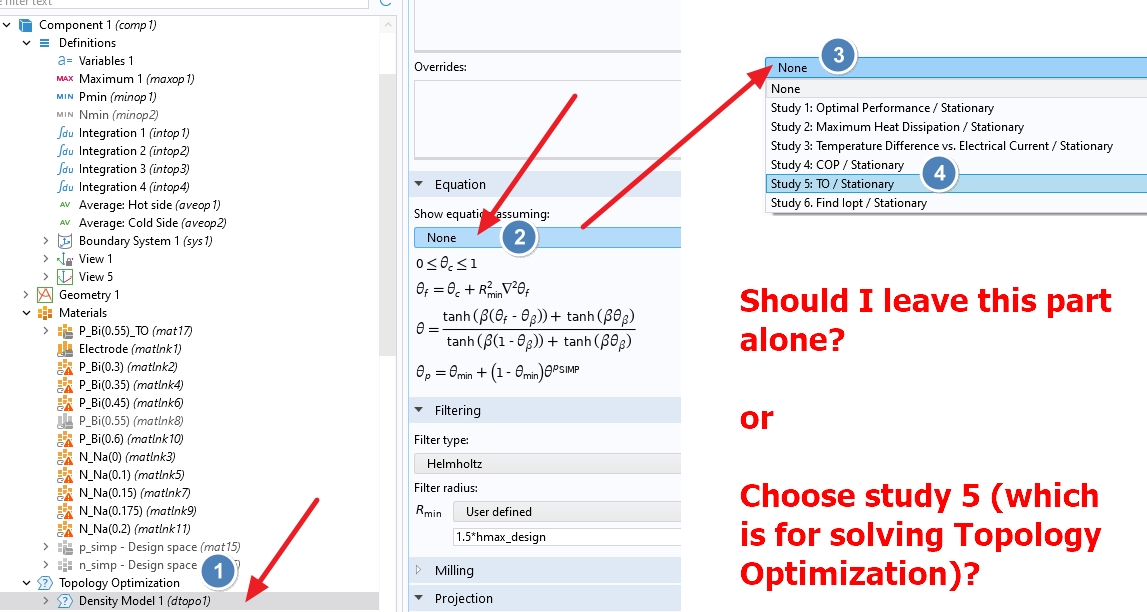

Attached is a picture to clarify.
Honestly, I don't actually understand what does the part show equations assuming mean
Attachments:
Please login with a confirmed email address before reporting spam
Different setups may leave certain equations looking different, but in this case, I don't think you will see any difference between studies. In general Show Equations Assuming is exactly that; show me what these equations will look like for a particular study.
-------------------René Christensen, PhD
Acculution ApS
www.acculution.com
info@acculution.com
Please login with a confirmed email address before reporting spam
Hi Haiyang,
The None option for the Show equation assuming list is a fallback that corresponds to the situation where no study is selected. It only exists for optimization och other features that are not physics features.
As René has already mentioned, what to select from this list only affects the displayed equations in the Settings window to show you what equation the chosen study will solve. It does not affect the computed solution in any way.
Best regards,
Magnus
