Change coordinate axis label
Posted 04.12.2012, 10:33 GMT-5 Geometry, Structural Mechanics Version 4.3 1 Reply
Please login with a confirmed email address before reporting spam
Hi Guys,
Does anyone know how to change the coordinate axes labels in COMSOL 4.3?

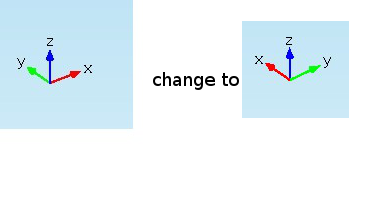

As we know, if we have a 3-D model and click 'Default 3-D view', we can observe that X axis is in the upper right direction, Y axis is in upper left direction and Z axis is in up direction.
So whether can I exchange the labels of X and Y axes? I mean I want to make X axis in upper left direction and Y axis in upper right direction. I don't like this. I have drawn a very complex structure, so I don't want to redraw my model.
Thank you for helping!
Does anyone know how to change the coordinate axes labels in COMSOL 4.3?
As we know, if we have a 3-D model and click 'Default 3-D view', we can observe that X axis is in the upper right direction, Y axis is in upper left direction and Z axis is in up direction.
So whether can I exchange the labels of X and Y axes? I mean I want to make X axis in upper left direction and Y axis in upper right direction. I don't like this. I have drawn a very complex structure, so I don't want to redraw my model.
Thank you for helping!
Attachments:
1 Reply Last Post 04.12.2012, 14:02 GMT-5
Please login with a confirmed email address before reporting spam
Posted:
1 decade ago
Hi
you should not rename the axis variables, but to change your "view orientation", check the view tab ;)
--
Good luck
Ivar
you should not rename the axis variables, but to change your "view orientation", check the view tab ;)
--
Good luck
Ivar
