Transient Simulation; Convergence Plot Wave form like

Posted 11.05.2022, 10:15 GMT-4 Structural & Acoustics 1 Reply

Dimitri Cuenot
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello everyone,

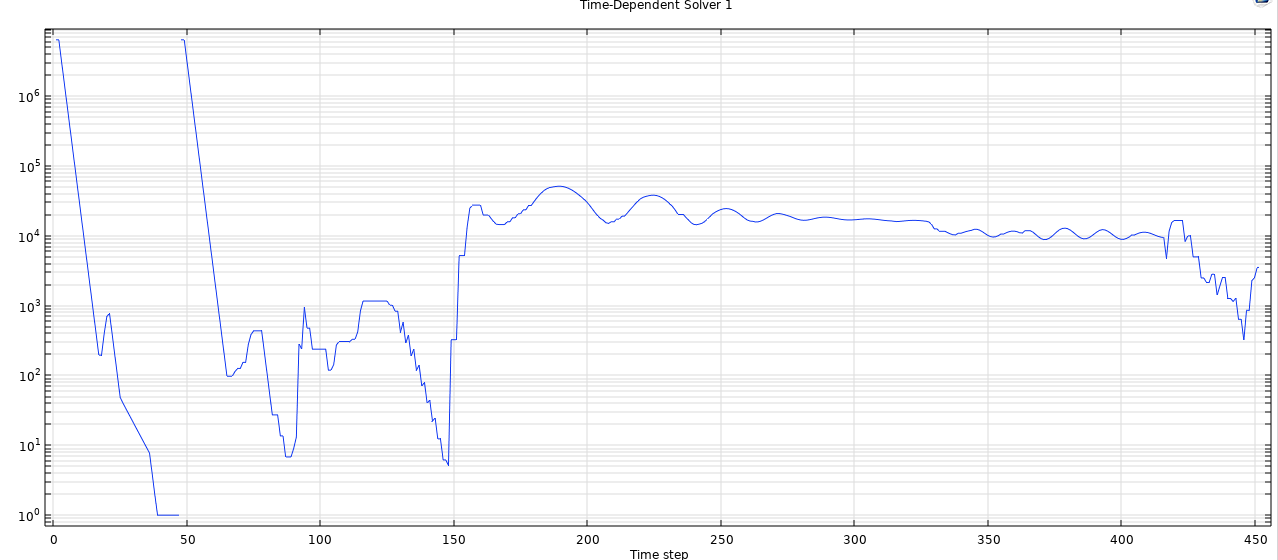

I wanted to know if someone already got a simulation whose convergence plot was showing waveform like ? Does it have consequences on the validity of the results ?

Best regards,

Dimitri

Attachments:

1 Reply Last Post 11.05.2022, 16:04 GMT-4
Dave Greve
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 11.05.2022, 16:04 GMT-4

I have often seen this sort of thing.

The (internal) time step continually adjusts to maintain accuracy, that is, the time step is smaller when there are rapid changes in something in the problem.

I have seen no evidence that this has an effect on the accuracy of the solution.

I have often seen this sort of thing. The (internal) time step continually adjusts to maintain accuracy, that is, the time step is smaller when there are rapid changes in something in the problem. I have seen no evidence that this has an effect on the accuracy of the solution.
