post processing

Posted 06.07.2021, 22:02 GMT-4 Electromagnetics, Results & Visualization, Studies & Solvers 1 Reply

Nikhil Valsan Kulangareth
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

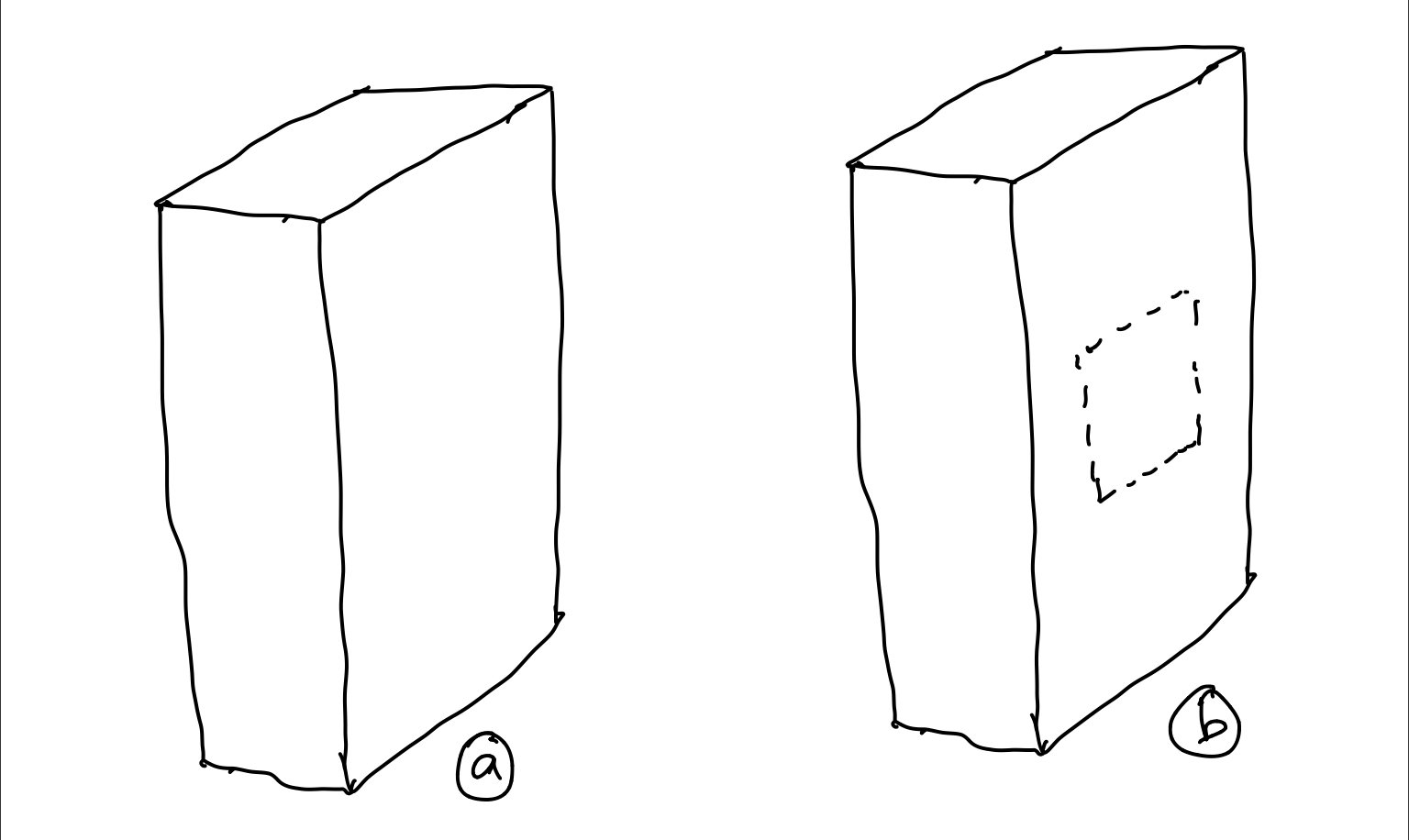

I have done a comsol study in a cuboidal block as shown in figure a. The geometry consists of just one domain (the cuboidal block).

I would like to know whether if it is possible to plot the parameters for eg: average voltage in a arbritrary region as shown in figure b, after the study is being completed. {This region is not defined before the study, area is chosen arbritrarily after the study is completed}

If possible how can this be done?

Thanks in advance

1 Reply Last Post 08.07.2021, 03:58 GMT-4
Gunnar Andersson COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 08.07.2021, 03:58 GMT-4

You can use a Surface or Volume plot to plot the voltage for the full block. To restrict it to a smaller region you can add a Filter subnode to the plot and enter a boolean expression. E.g., "x>=0 && x<=1 && y>=0 && y<=1".

You can use a Surface or Volume plot to plot the voltage for the full block. To restrict it to a smaller region you can add a Filter subnode to the plot and enter a boolean expression. E.g., "x>=0 && x=0 && y
