Problems with S-parameter calculation
Posted 22.05.2012, 19:01 GMT-4 RF & Microwave Engineering Version 4.2a 10 Replies
Please login with a confirmed email address before reporting spam

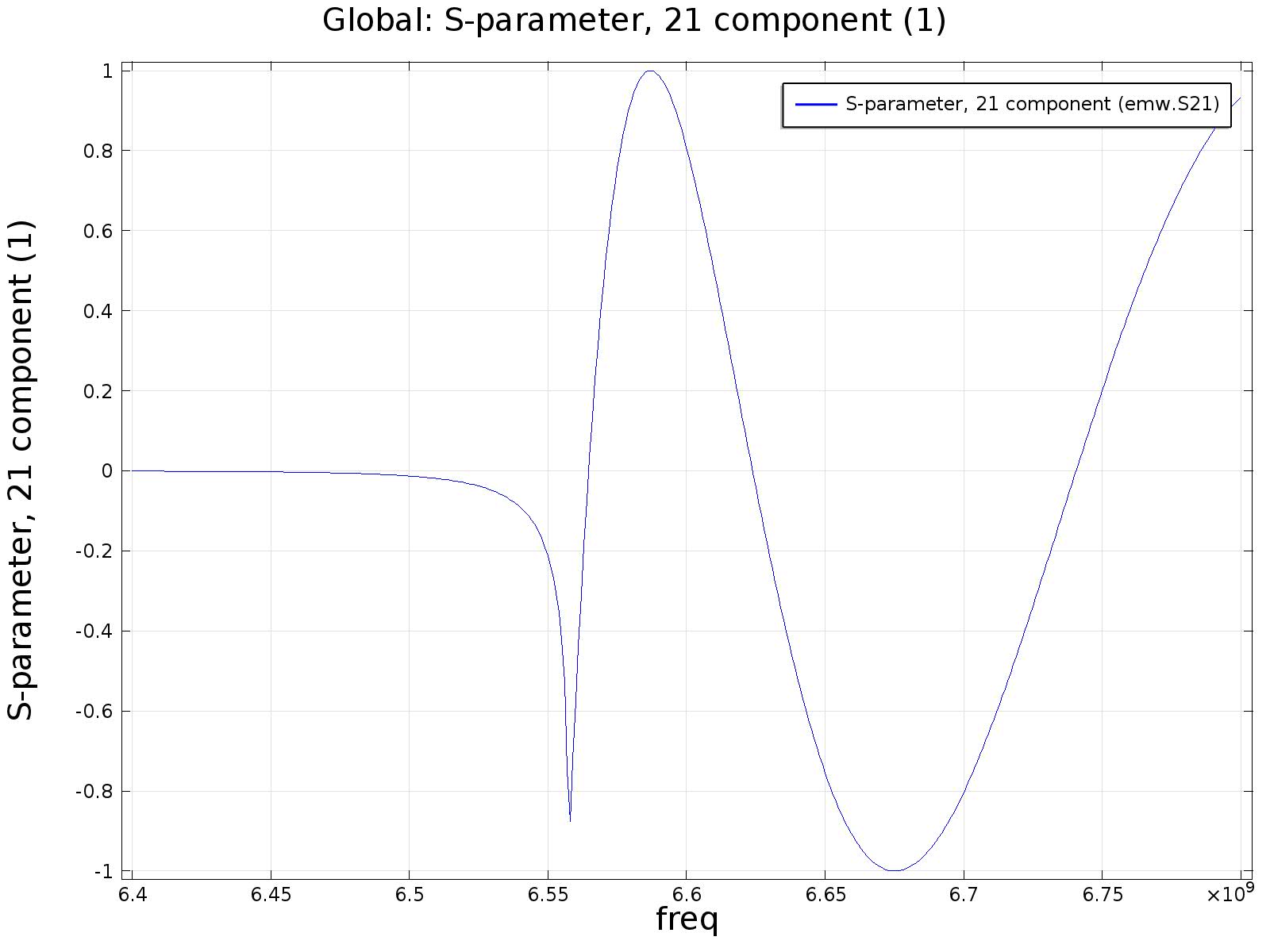

-S21 has peaks. Evident when exporting data and analyze it presents oscillation between 1 and -1

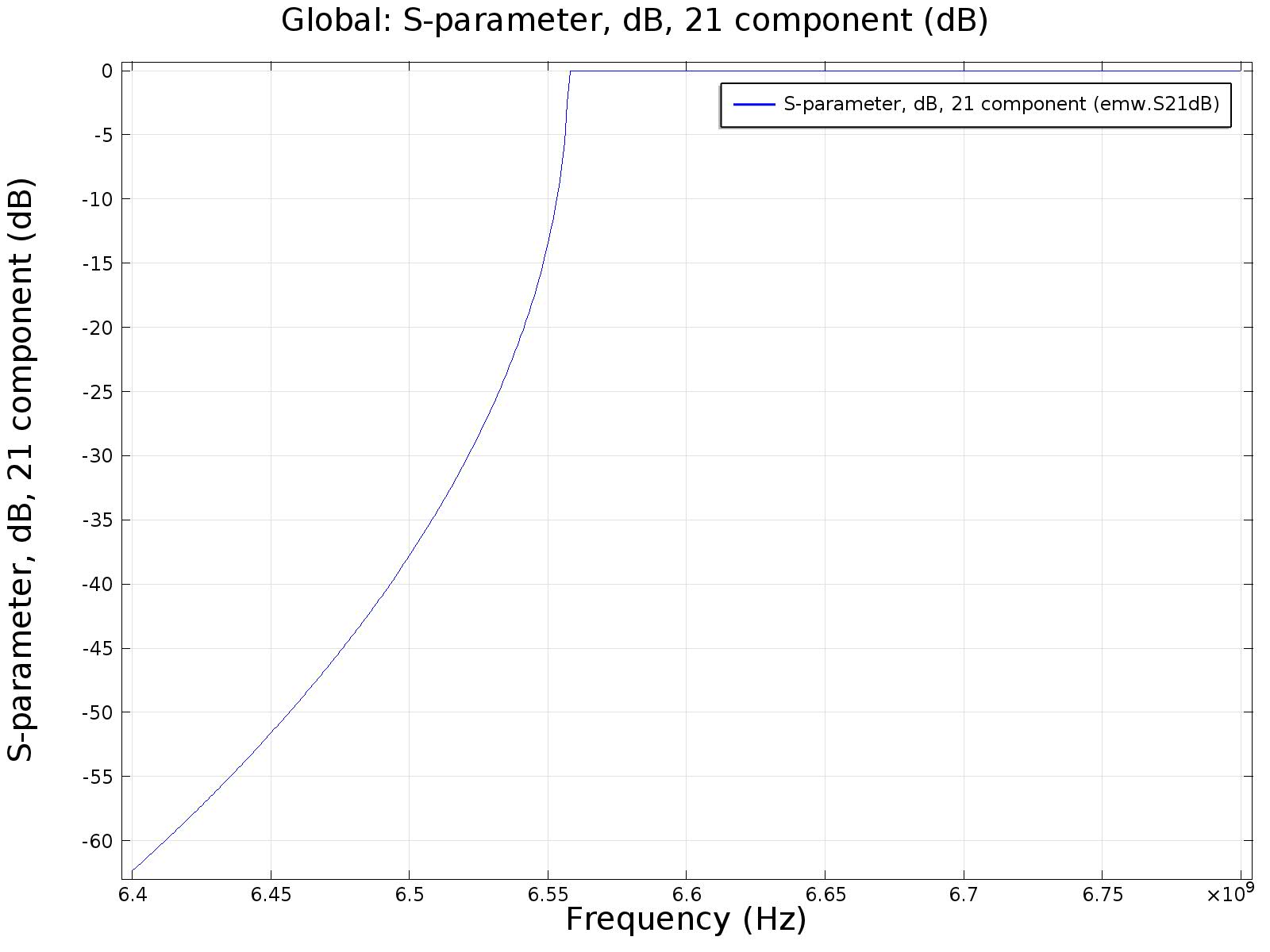

-dBS21 plot in COMSOL, the oscillatory beahavoir of S21 is not presente and what is more strange is when calculated
with the formula (dBS21 = 20 * log (abs (S21)), I get different values from those used in the graphic COMSOL dBS21 and the oscillatory beahavoir is present.
If Comsol used otherwise for caculation of dBS21 parameter please enlighten me, that the results did not close.
Please help me!
Please login with a confirmed email address before reporting spam
have you run and studied the Model library "Branch Line Coupler" ? you might find some replies thereby. It is indeed strange that the dB and linear representastion are different, I suspect you have something else you are missing
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam

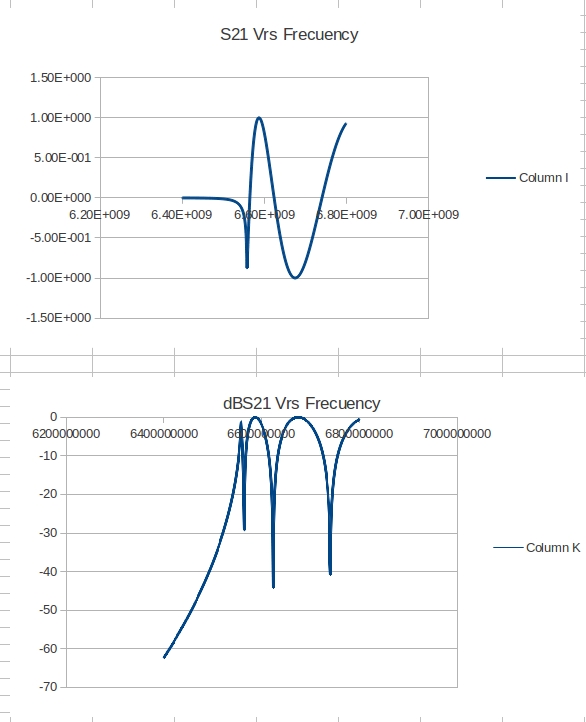

I have been analyzing the data, exporting data comsol and plotting in other software. When applied to the above equation at S21 data get the same results, but after some resuts the Comsol data tend to zero while the result obtained with the equation oscillated respect to zero but the magnitude is very diferent.
I hope that there are a explanation for this dissimilitude. For the attached model the cut frecuency at TE10 mode in the theory is 6.562GHz.
Thanks again for your help.
Attachments:
Please login with a confirmed email address before reporting spam
how do you normalise the S21 curve to get the dBS21 curve?
As you have S21 positive and negative, you canot take the log of that without some renormalisation.
Your dB curve sem to pass by "0" at each extrema of S21
Have you checked the formulas COMSOL uses (turn on the Equation view, they are perhaps listed therein)
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
You can explain how I can view the equation, because I have no idea. I used absolute value of S21 for applied the logaritmic funtion as mentioned in the RFModuleUsersGuide for S11.
Thanks for your help.
Please login with a confirmed email address before reporting spam
Please login with a confirmed email address before reporting spam
OK if you take the absolute value of an oscillating (alternating sign) function you double the peaks, and that explains the alternances of zeros and extremas
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
you are right, and I would like to ask you about Port uses.
it is excite a rectangular wave guide with a port of the same type (rectangular), but at the outlet of the guide is circular. The question is: What kind of port should be use in the outlet? if mode and frequency are defined for rectangular inlet section (this problem is similar to Model Wave guide adapter but with definid mode and frecuency in the inlet section )
Thanks for your help.
Please login with a confirmed email address before reporting spam
Sorry I havent been active in that part of the physics for a few years. Back in 3.5 you needed to integrate a few equations to get the appropriate form factor to use on the Port adaptation vualues, but I cannot remmeber precisely, and They must have improved that since.
There are several good RF and optics specialist out here, hopefully one of tehm is willing to give us some explanations ;)
--
Good luck
Ivar
Please login with a confirmed email address before reporting spam
I work with COMSOL 4.3
Thanks
Please login with a confirmed email address before reporting spam
I'm not aware of any automatic Touchetone file generation (there might be though ;) but if its a standard
frequency, S11 dB + phase, S12 ...
type file, then you can generate the table with the Derived Values nodes and export the resulting table easily
--
Good luck
Ivar
