How can I have a colorful volume in my results?

Posted 12.01.2021, 09:01 GMT-5 General, Results & Visualization 1 Reply

Marziyeh Tavakkoly
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

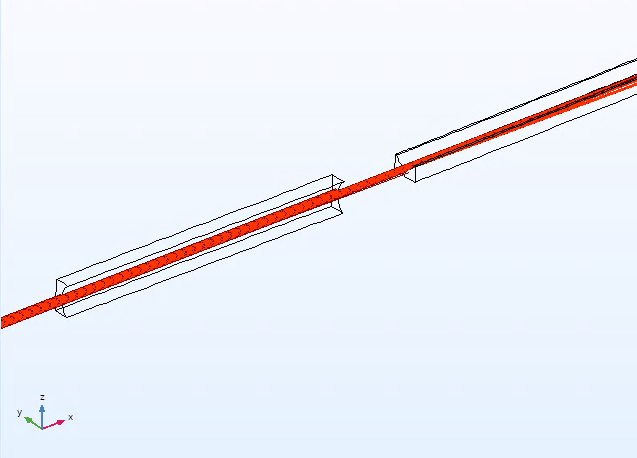

How can I have a colorful volume in my results? I simulated in the ray-tracing module. My geometry is transparent but I would like the mirrors to have a blue color. Or for example, I would like the first mirror is red and the second is blue.

Attachments:

1 Reply Last Post 12.01.2021, 10:11 GMT-5
Jeff Hiller COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 3 years ago 12.01.2021, 10:11 GMT-5
Updated: 3 years ago 12.01.2021, 10:14 GMT-5

Hello Marziyeh,

This blog post will give you an introduction to the techniques you can use to achieve such plots. Note that version 5.6, which was introduced after that blog post was written, introduced many additional powerful visualization capabilities, an overview of which you can find in the Release Highlights

Best regards,

Jeff

-------------------
Jeff Hiller
Hello Marziyeh, This [blog post](https://www.comsol.com/blogs/include-geometry-surfaces-solution-plots/) will give you an introduction to the techniques you can use to achieve such plots. Note that version 5.6, which was introduced after that blog post was written, introduced many additional powerful visualization capabilities, an overview of which you can find in [the Release Highlights](https://www.comsol.com/release/5.6/postprocessing-and-visualization) Best regards, Jeff
