electric field distribution with respect to arc length plot
Posted 07.04.2020, 20:33 GMT-4 Electromagnetics, Microfluidics, Biosciences Version 5.4 0 Replies
Please login with a confirmed email address before reporting spam

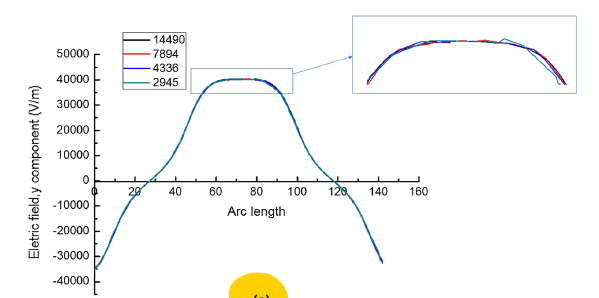

Hello, I'm still very inexperienced using Comsol. I wanted to plot the relationship between the arc length and the electric field distribution as shown in the figure below. Unfortunately, I am not familiar with how to apply it. Please help me how to plot such relationship and anyother ones Thanks
Attachments:
Hello Rana Hossam Elden
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
