Using an Analytical Pulse Voltage Source on an Arbitrary Electromagnetic Circuit Board
Posted 09.12.2019, 16:37 GMT-5 0 Replies
Please login with a confirmed email address before reporting spam
The below post is related to an archived discussion
[start here]
It seems the previous thread was not answered. It has been over 2 years since it was posted.

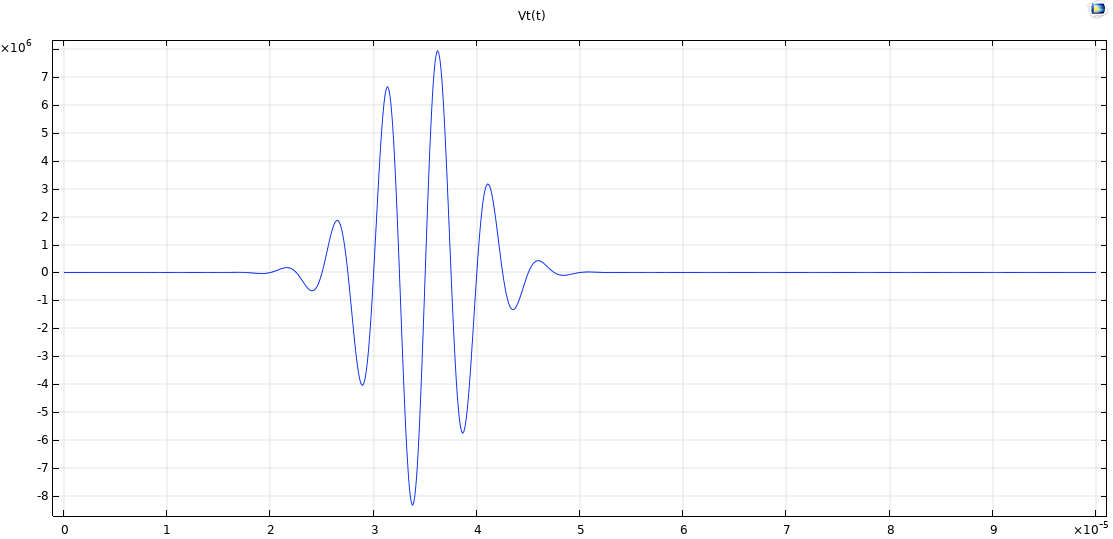

I am atempting to use a very similar pulse voltage source on a circuit I have designed for local magnetic field generation. I will attach a plot of the voltage I am trying to use.
I am ultimately having issues applying this pulse voltage to my model and could use help. I simply would like to use a "terminal" on one of the pads and "ground" the opposite pad. I have tried also to use the Electric Circuit Physics to define certain terminals, but I still have the issue of using the Pulse Voltage I desire to use. Help needed! Thanks.
