3D plot with imported data I see a cube not the shape of my geometry

Posted 09.09.2019, 06:14 GMT-4 Parameters, Variables, & Functions, Results & Visualization 0 Replies

Francesca Capelli
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi to everyone!

I have a problem with imported data in Comsol.

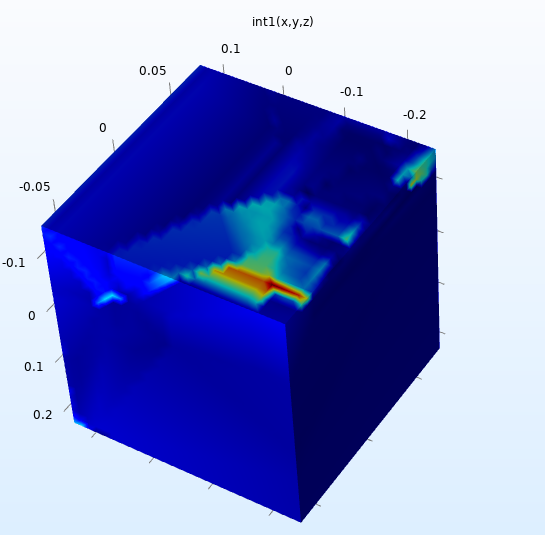

I have a csv matrix of this type: x y x E (text.txt) where x,y,z are spatial coordinates and E the electric field in this point (ranging from 2.5 to 3.5). I have imported the csv file through Interpolation and it seems to be ok but when i click plot I see a cube whereas I should see the shape of my geometry.

I would like to see in the same picture the results of simulation and the results contained in this file.

Anyone could help me please?

Thanks.

BR,

Francesca
