Question Regarding 3D Geometry

Posted 27.09.2011, 04:45 GMT-4 Geometry Version 3.5a, Version 4.2 2 Replies

Qasim Ali Chaudhry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

I have a question regarding a 3d geometry. I want to draw the following geometry:

1) Draw a sphere (3D) ... I can draw it.
2) Drawing small spheres or non-spherical geometries (of same shape and size at equidistant like aray) around the big sphere (which was drawn in first step).

For understanding purpose, please consider the picture (attached) in 3D.

Is it possible to draw these small object around an object with some tool available in Comsol. How can I draw it..

Any suggestion/comment will highly be appreciated.

Thanks in advance.

Best Regards

Qasim

Attachments:

2 Replies Last Post 27.09.2011, 07:56 GMT-4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27.09.2011, 07:48 GMT-4
Hi

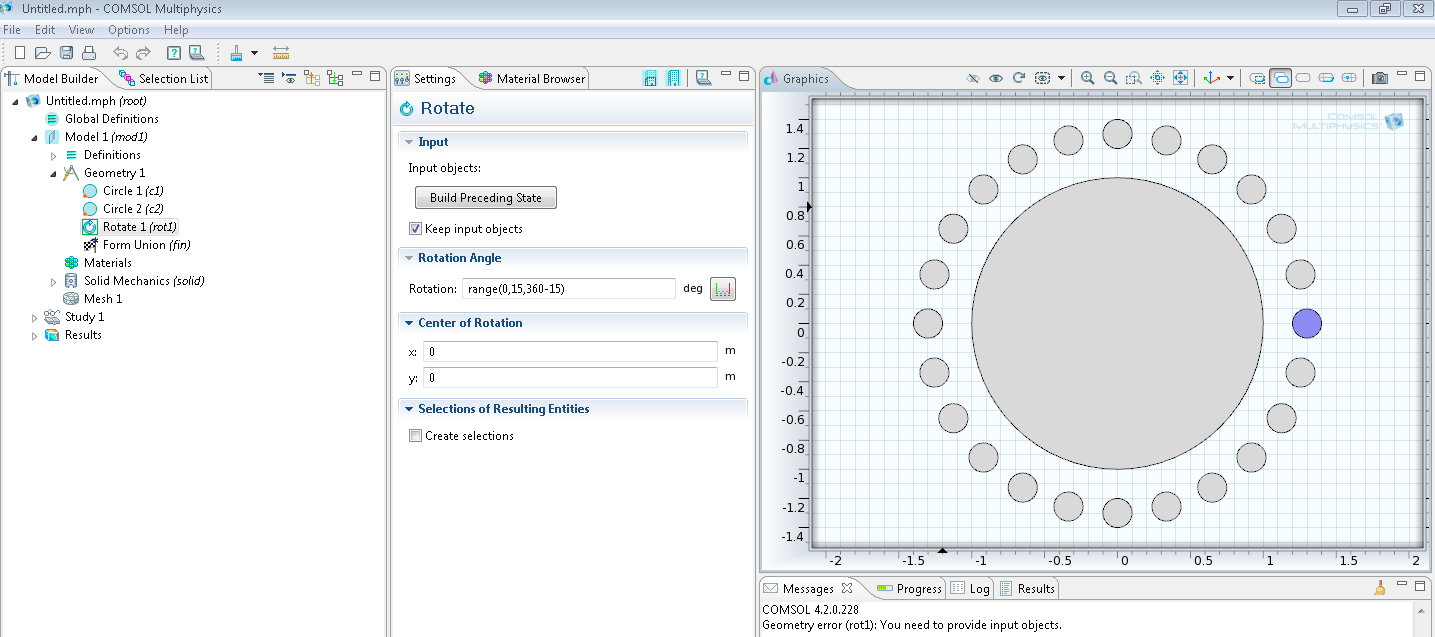

In V4 what if you try the "rotate command" on the small circle and define a "range" see the image

--
Good luck
Ivar
Hi In V4 what if you try the "rotate command" on the small circle and define a "range" see the image -- Good luck Ivar

Attachments:

Qasim Ali Chaudhry
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27.09.2011, 07:56 GMT-4
Dear Ivar,

Thanks a lot. It worked.

Best Regards

Qasim

Dear Ivar, Thanks a lot. It worked. Best Regards Qasim
