roll to roll

Please login with a confirmed email address before reporting spam

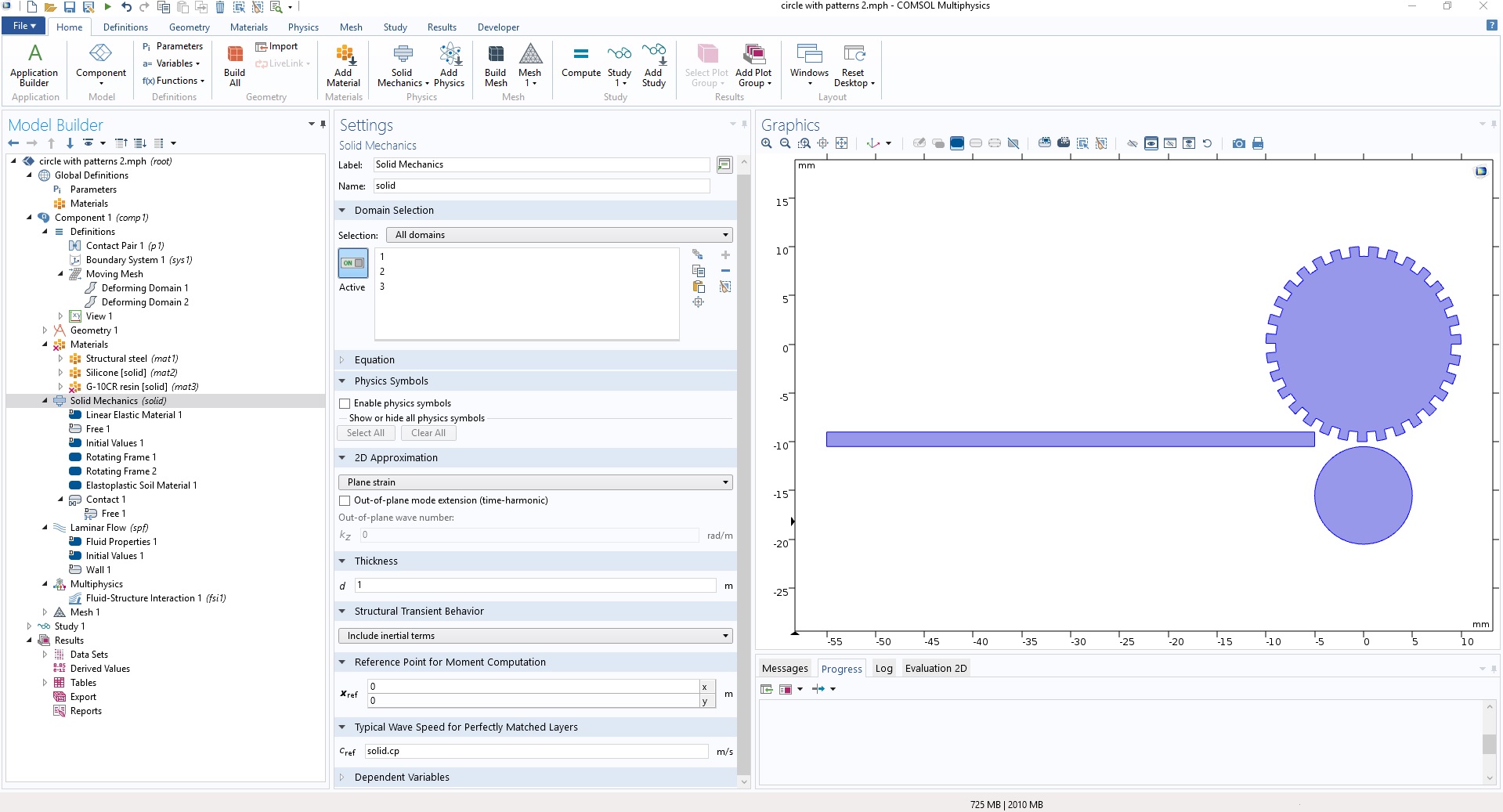

i need help in order to simulate the roll to roll cylinder with patterns . in which a fluid element placed on a plastic sheet i want to move this fluid channel between two rotating cylinder. i used solid mechanics modeule together with FSI module. actually i want to translate the fluid element between two rotating cylinder what boundar conditions i need to give for the translation of fluid element placed on plastic sheet. please see the attched file for further details. what is suitable method to simulate this problem.



0 Replies Last Post 02.01.2019, 00:16 GMT-5
COMSOL Moderator

Hello Usama Tahir

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
