Controller

Posted 14.05.2018, 10:02 GMT-4 Low-Frequency Electromagnetics Version 5.3 2 Replies

João Oliveira
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

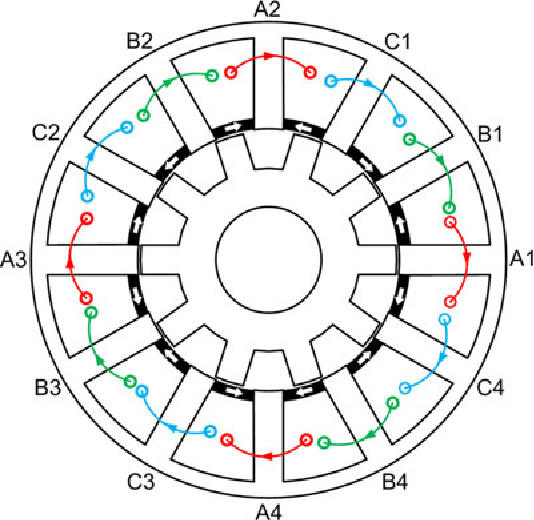

Hello, I'm modeling a Brushless AC Doubly Salient Stator Slot Permanent Magnet Generator, as in the figure that is attached. How do I make the controller or sync the currents to make the machine work as a generator in the comsol? Anyone could help me?

Regards, João Oliveira

Attachments:

2 Replies Last Post 15.05.2018, 09:24 GMT-4
Nirmal Paudel Tribhuvan University/Electrical Engineering
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 15.05.2018, 08:33 GMT-4

Hi There,

To make a different current waveforms, I would recommend to use the "Functions-> Analytic/Periodic/PieceWise" or a combination of these functions to get a input current waveforms for each phases.

BR/Nirmal

Hi There, To make a different current waveforms, I would recommend to use the "Functions-> Analytic/Periodic/PieceWise" or a combination of these functions to get a input current waveforms for each phases. BR/Nirmal
João Oliveira
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 6 years ago 15.05.2018, 09:24 GMT-4

Hi nirma, Thanks a lot for reply. Do you have any example that I can use to guide me?

Regards, João Oliveira

Hi nirma, Thanks a lot for reply. Do you have any example that I can use to guide me? Regards, João Oliveira
