Interpolation from figure data
Posted 11.04.2018, 11:27 GMT-4 Heat Transfer & Phase Change, Computational Fluid Dynamics (CFD), Parameters, Variables, & Functions Version 5.2a 2 Replies
Please login with a confirmed email address before reporting spam
Hello, Recently I'm trying to use comsol for evaluating the term source of my model, the term source depends of two variables, the heat capacity and magnetization that i don't have the table data.

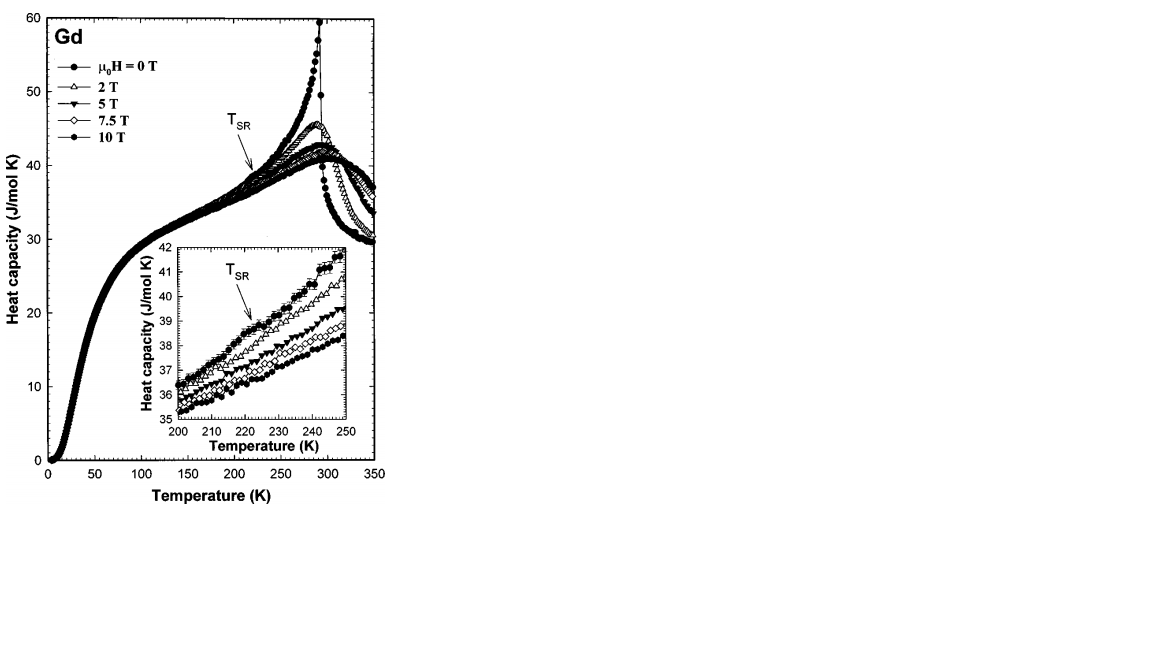

the corresponding data available of heat capacity as the function of T and µ0H is shown in this figure;
How can i exploit this figure and use it for the interpolation function in order to evaluate the term source. Should i import it in the table. if yes, which technique or how can i do it? thank you
Attachments:
Please login with a confirmed email address before reporting spam
Aicha,
you might digitize the curves with a graphics tablet. If you don't have one I guess you have to do it like in the good (?) old days. Print it, take a ruler and a pencil, measure the curves and put the data to your table. Tip: Print it on a sheet of millimeter grid paper.
Cheers Edgar
