Swept Linking Face Problem Solutions

Please login with a confirmed email address before reporting spam

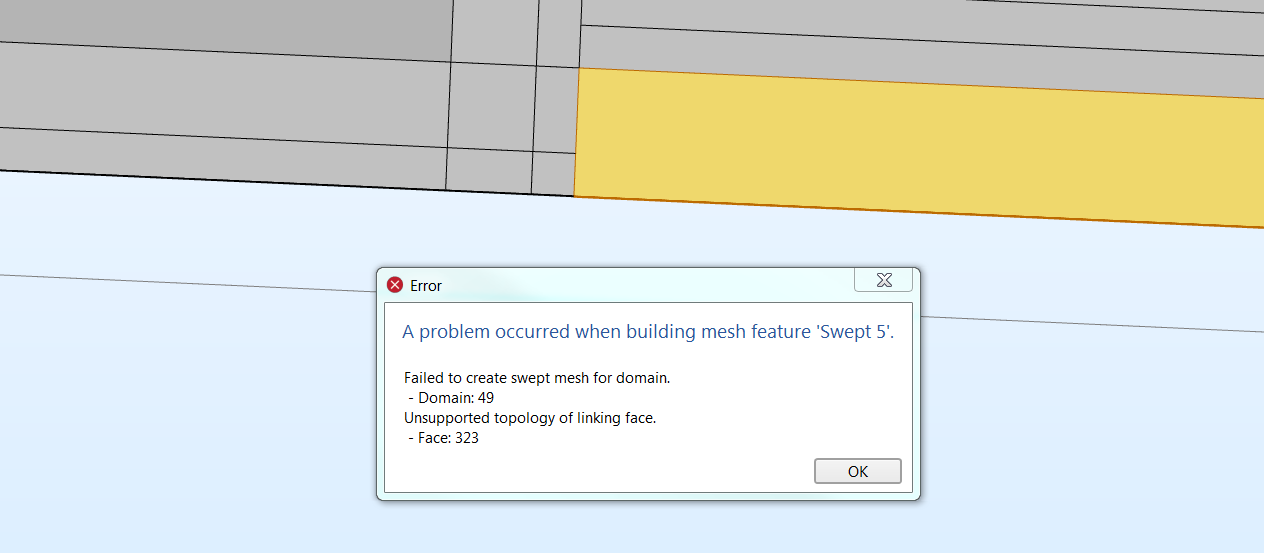

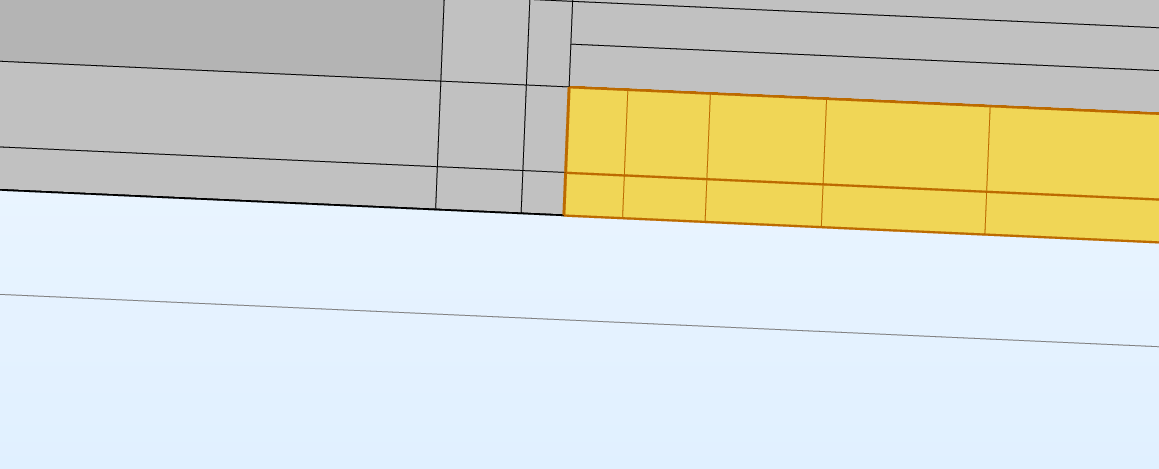

I am currently having issues linking source faces to its destination face in the swept mesh. The Geometry I am using has a thin device design, and have successfully meshed the source face. When doing the sweep, a side face is currently sounding off an "Unsupported topology of linking face" error even though it is a simple extrude.

I am unsure how to debug this current issue to remove the problem as the geometry is a flat face that should have no topological complexity. The file size is larger than 5 MB and even through optimization I cannot attach it.


1 Reply Last Post 27.07.2018, 11:53 GMT-4
COMSOL Moderator

Hello Jeremy Brine

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.


Please login with a confirmed email address before reporting spam

Posted: 6 years ago 27.07.2018, 11:53 GMT-4

hi Jeremy,

I don't know if you still need the answer. But I think you shode partition the domain based on the neighbor domains. I have attached an example.

Bests, Mohammad

hi Jeremy, I don't know if you still need the answer. But I think you shode partition the domain based on the neighbor domains. I have attached an example. Bests, Mohammad
