Union in a laminar structure

Posted 23.10.2017, 03:22 GMT-4 General, Geometry, Modeling Tools & Definitions 1 Reply

Ram Prasadh Narayanan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

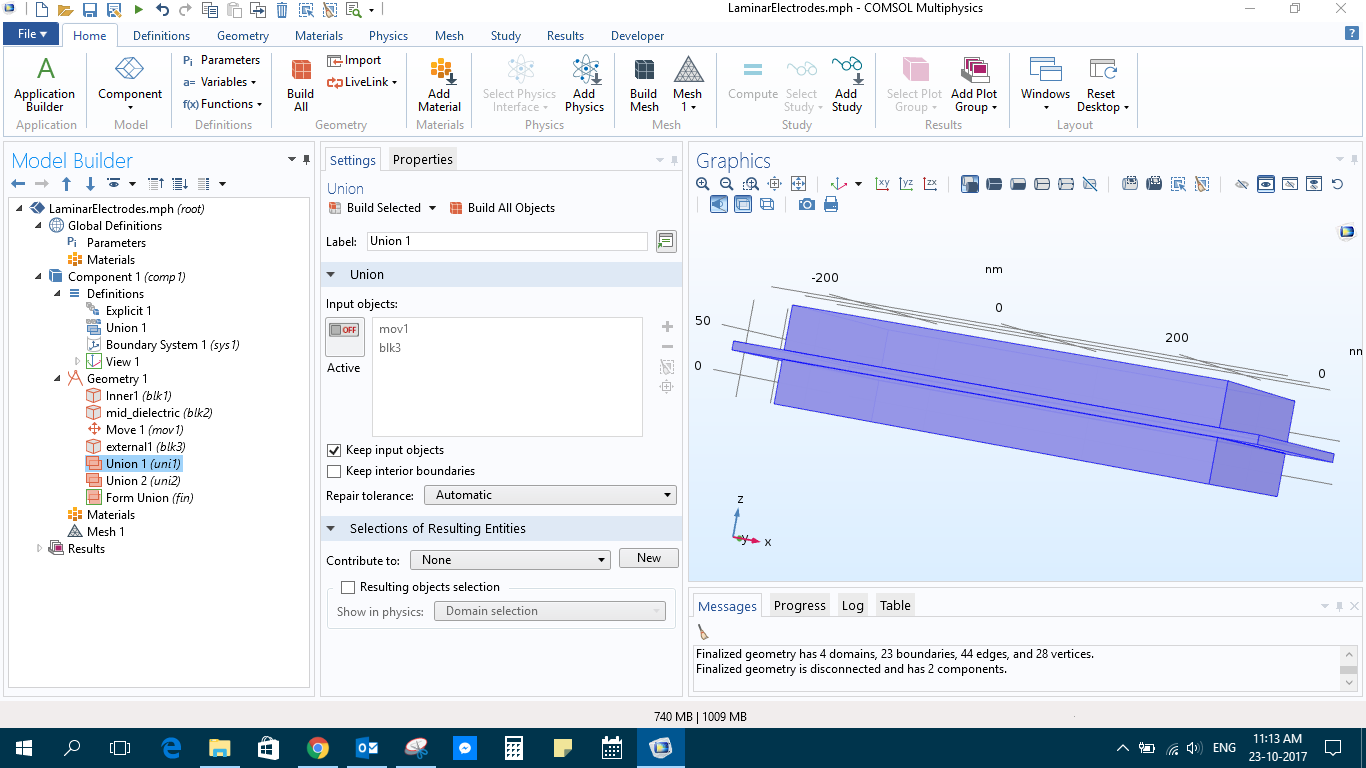

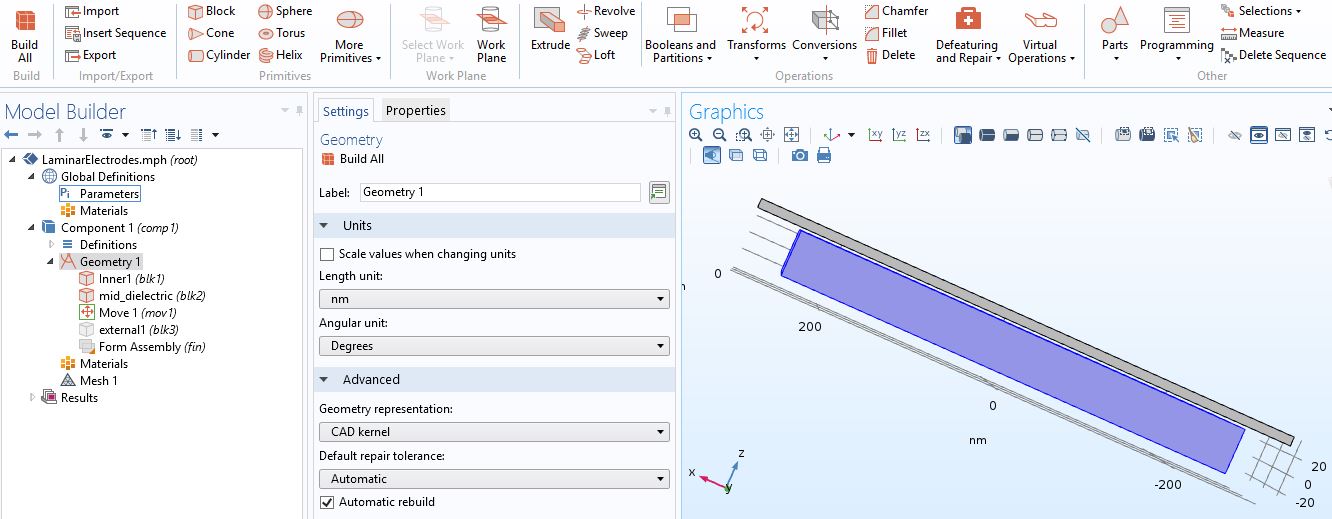

Hi, I am trying to build a laminar structure. How to combine two layers in the structure? By combine, I mean, I want the layers to be attached, but different. So in a latter stage, I will assign different materials to them. Screenshot here of the uncombined section. Any help will be helpful.

Thanks Ram.

Attachments:

1 Reply Last Post 23.10.2017, 04:16 GMT-4
Ram Prasadh Narayanan
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 7 years ago 23.10.2017, 04:16 GMT-4

One more question: The object message says that the geometry is disconnected. I have formed the union, but not sure why the message says it. Can anyone please let me know how I can make a connected geometry here? Thanks Ram.

One more question: The object message says that the geometry is disconnected. I have formed the union, but not sure why the message says it. Can anyone please let me know how I can make a connected geometry here? Thanks Ram.

Attachments:
