Cannot generate Global Evaluation

Posted 15.04.2017, 18:16 GMT-4 Low-Frequency Electromagnetics, MEMS & Nanotechnology, MEMS & Piezoelectric Devices Version 5.1 0 Replies

Yuchen Shen
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

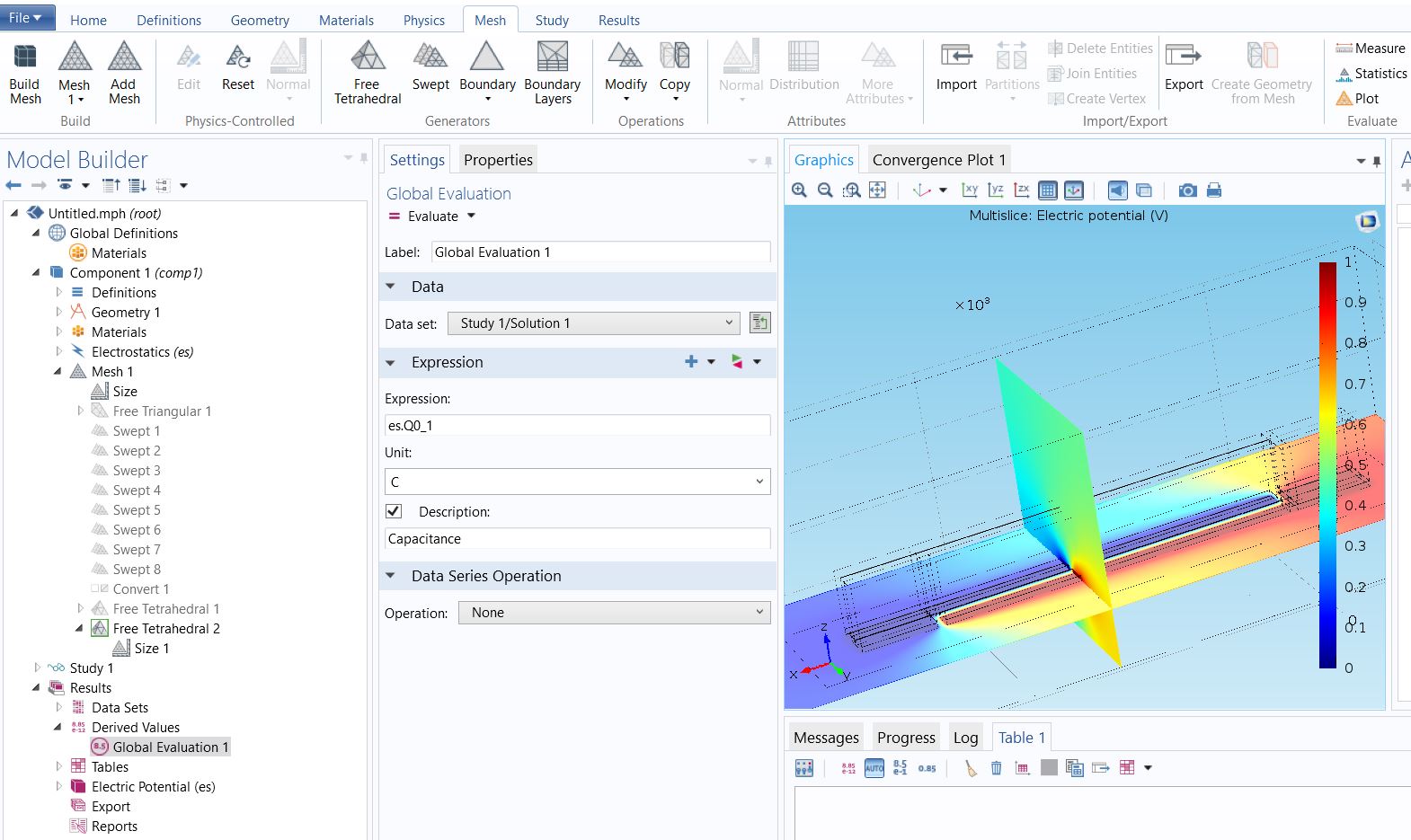

I am using Comsol to simulate the electric field of two electrodes. Last time I used the Global Evaluation to calculate the capacitance between two electrodes by expression - component1 - Electrostatics - Terminals - es.C11 and it worked will. But now I build a new model and try to do the same way, when I click the 'Evaluate', the calculated value did not show up in the Table. No other information is provided by COMSOL.

Does someone knows what should I see the value?

Thanks,
Yuchen

Attachments:

0 Replies Last Post 15.04.2017, 18:16 GMT-4
COMSOL Moderator

Hello Yuchen Shen

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
