How to calculate radiated power in lumped port boundary condition

Posted 07.11.2016, 02:17 GMT-5 Version 4.4 0 Replies

Deepshikha Bhargava
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

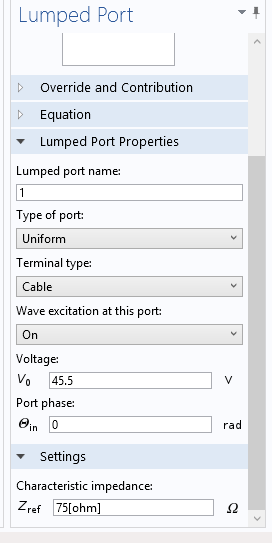

I am new to comsol. I have been working on a project. I made a mobile patch antenna and set lumped port boundary condition in the Electromagnetic waves frequency domain module, i set voltage= 45.5, Z(ref) = 75(ohm). My question is, i want to apply 1watt radiated power and i don't know how to set it in the lumped port boundary condition. I have guess the radiated power can be calculated by some formula using the values in the lumped port condition. I dont know what is the formula. Can anyone help?

Thanks in advance.

Attachments:

0 Replies Last Post 07.11.2016, 02:17 GMT-5
COMSOL Moderator

Hello Deepshikha Bhargava

Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.

If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.

Note that while COMSOL employees may participate in the discussion forum, COMSOL® software users who are on-subscription should submit their questions via the Support Center for a more comprehensive response from the Technical Support team.
