Computing the ratio of input/output power in wave optics module

Posted 24.07.2016, 05:57 GMT-4 Wave Optics Version 5.2 2 Replies

Nirmalendu Acharyya
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hi,

I am a beginner with COMSOL.

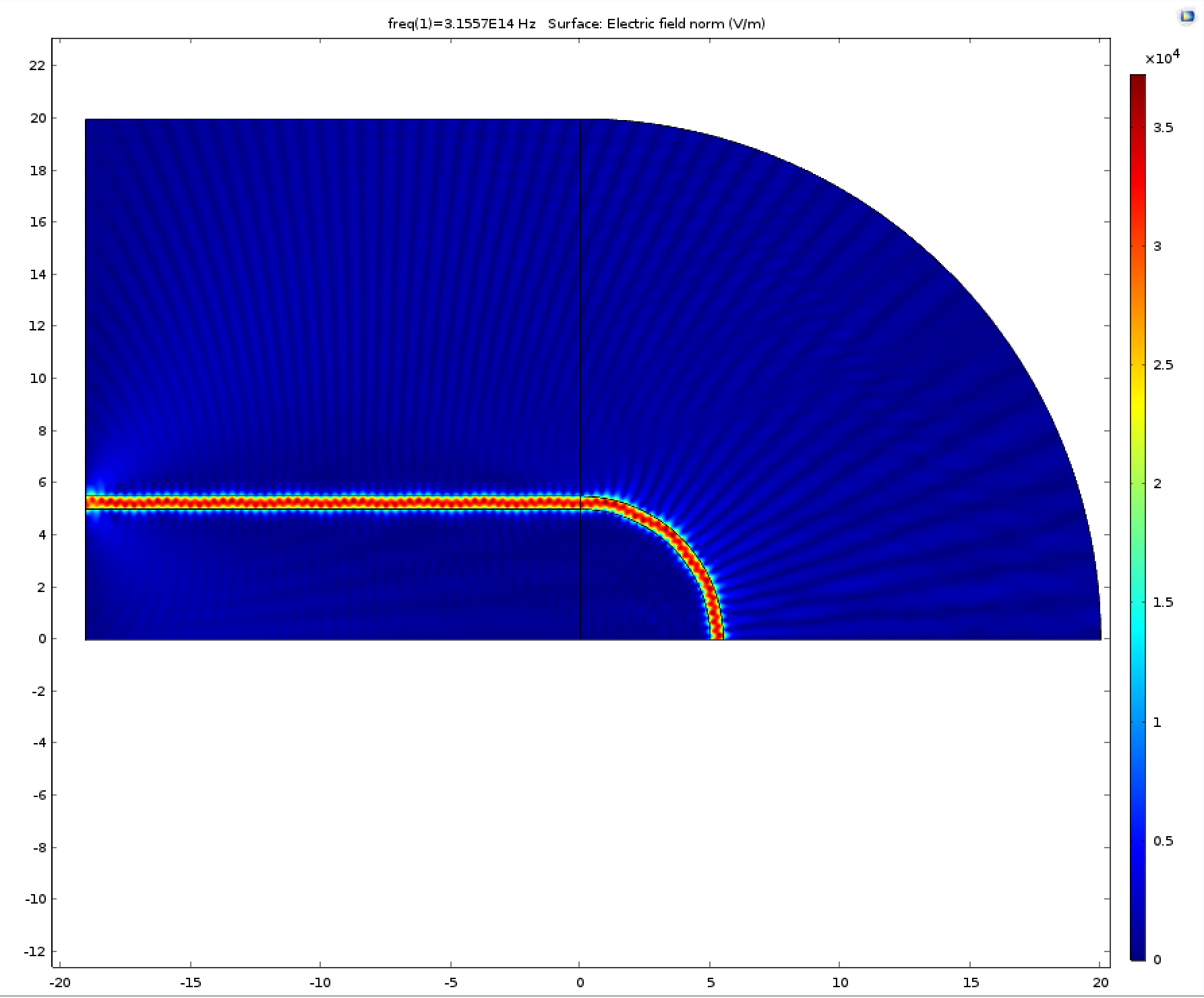

I have made a simulation in which I have waveguide which bends. I have found the Electric field. I want to compute the bending loss by comparing the total intensity/power at input and output. Please see the attached file.

Thank you.

Best regards,
Nirmalendu Acharyya

2 Replies Last Post 25.07.2016, 04:57 GMT-4
Chris Nadovich
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 24.07.2016, 17:25 GMT-4
Have you tried Derived Values -> Global Evaluation -> -20*log10(ewfd.S21)? Didn't look at your file.
Have you tried Derived Values -> Global Evaluation -> -20*log10(ewfd.S21)? Didn't look at your file.
Nirmalendu Acharyya
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 8 years ago 25.07.2016, 04:57 GMT-4

Have you tried Derived Values -> Global Evaluation -> -20*log10(ewfd.S21)? Didn't look at your file.


Thank you. That Helps.

Best redards,
Nirmalendu
[QUOTE] Have you tried Derived Values -> Global Evaluation -> -20*log10(ewfd.S21)? Didn't look at your file. [/QUOTE] Thank you. That Helps. Best redards, Nirmalendu
